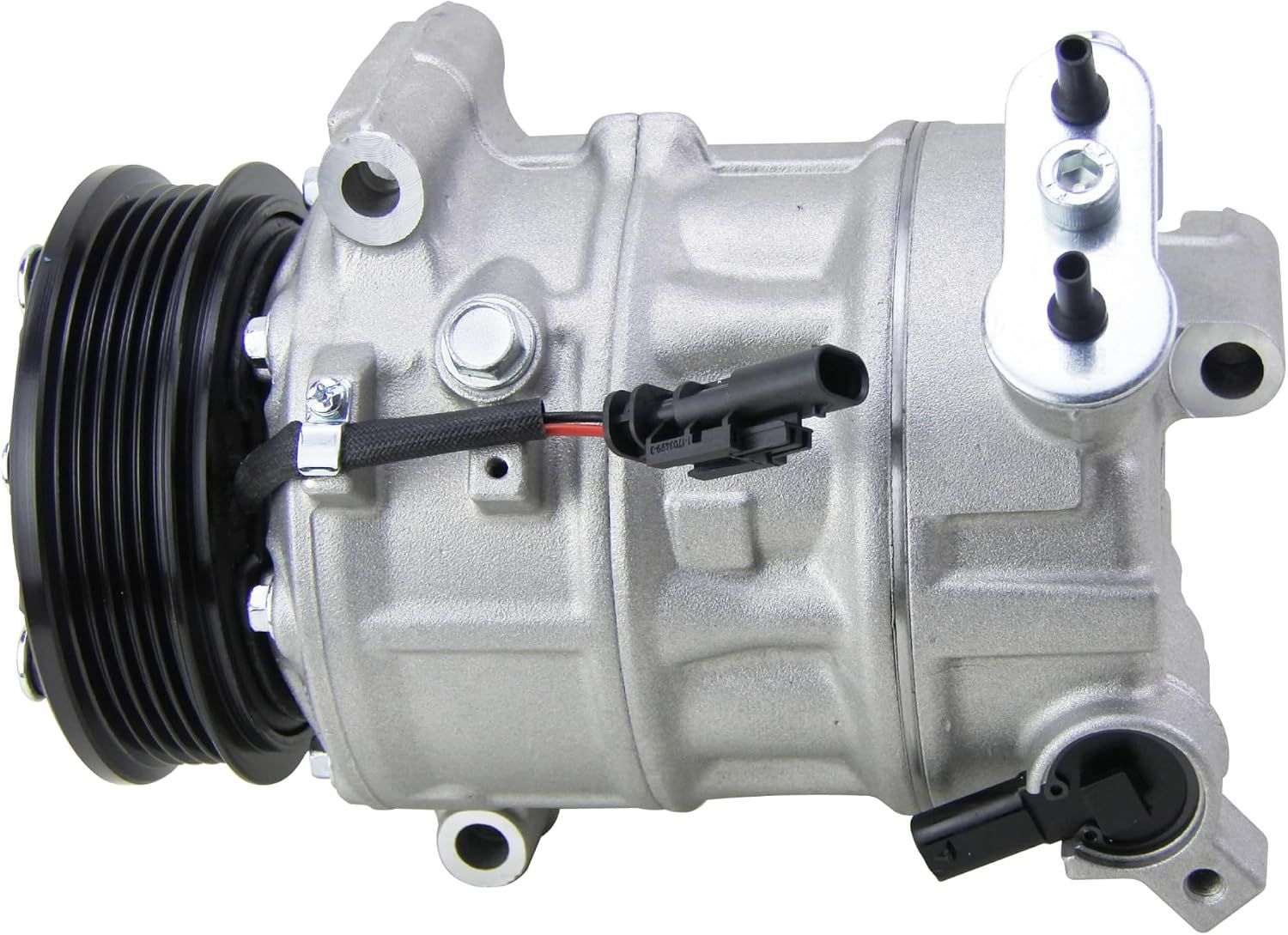

Chevrolet Equinox Or GMC Terrain 2012-2014 A/C Compressor 2.4L

Pamolag AC Compressor For Chevrolet Equinox For GMC Terrain Engine 2012-2014 A/C Compressor 2.4L CO22229C

About this item

• Fitment: Fit for 2012/2013/2014 Chevrolet Equinox 2.4L ; Fit for 2012/2013/2014 GMC Terrain 2.4L ;
• Interchange Part Number: 1422229, 1522229, 198312, 2020779, 2020779AM, 208012, 22798745, 23255703, 276463, 4710719, 648329, 6512943, 7512943, A76463, AC1208012, C2729, C2769, CO22229C, T198312
• Includes: AC Compressor Body ; Gloves ; Pulley/ Coil ; Screw ; Screw Nut
• Since the AC compressor has added oil sent to you, there is no need to add oil when you use it for the first time. However, it is necessary to add refrigerant, please add about 500g, no need to fill it up. If the refrigerant is added too much, it may make noise, please refer to the model list before purchasing.
• Please not ：To ensure the correct installation and safe use of the product, we suggest that AC compressors should be installed by professionals who have EPA certification or relevant licenses.

Product Description:

This new air conditioning compressor includes a new pre-installed clutch, coil and pulley manufactured and designed to replace the original air conditioning compressor in your vehicle.

Since the AC compressor has added oil sent to you, there is no need to add oil when you use it for the first time. However, it is necessary to add refrigerant, please add about 500g, no need to fill it up. If the refrigerant is added too much, it may make noise, please refer to the model list before purchasing. We provide excellent after-sales service. If you have any questions, please contact us.

As one of the professional manufacturers of auto air conditioning parts and accessories, we are committed to providing our customers with high quality, high performance and reliable auto parts in order to be trusted by mechanics and car owners around the world. We use the most advanced production technology and materials to ensure the highest level of quality and performance of our products. Our products, manufactured in compliance with international OE standards, undergo 100% cosmetic inspection and quality testing, and we offer a 100% satisfaction guarantee.

Specifications:

Clutch Included: Yes

Clutch Maximum Diameter: 4.76541

Compatible Refrigerant Oil Type: Pag 46

Compressor Type: 7sbh17

Discharge Port Type: Sealing Washer

Distance From Clutch To Mounting Flange: 1.221457

Mount Distance MM: 30.514

Mounting Hardware?: Not Included

Mounting Type: Tangent Mount

New or Reman: New

Printed Foot Note: May Require Use Of Oe Manifold

Pulley Belt Type: Serpentine

Pulley Diameter MM: 120.152

Pulley Groove Quantity: 5

Pulley Lip Diameter: 4.76541

Pulley Ridge Diameter: 4.76541

Refrigerant Type: R134a

Suction Port Type: Sealing Washer

Feature:

Quite and Comfortable

Smooth Running

Low Noise

Low Vibration

Low Starting Torque

Stable&Strong Pressure

Rapid Renfrigeration and Solve Sultry

Reduce Fuel Consumption and Improve Power

Energy Saving

Sturdy and Durable

Affordable Price

Installation instructions:

1. Before installation, be sure to repeatedly clean the air conditioning system to remove the pipeline and fill the pipeline with cleaning agent. Condenser, evaporator soak for about 20 minutes until the cleaning agent out of the cleaning is clear.

2. replace the drying bottle.

3. Be sure to clean the expansion valve (or replace with a new one).

4. Clean the condenser surface, evaporator core surface. Clean the evaporator filter.

5. check whether the cooling fan is working properly.

6. Install a new machine and fill it with genuine R134a refrigerant.

A system that is not clean will result in insufficient compressor pressure, rattling, and premature compressor failure almost every time. In severe cases the compressor pulls and holds!

Interchange Part Number:

1422229, 1522229, 198312, 2020779, 2020779AM, 208012, 22798745, 23255703, 276463, 4710719, 648329, 6512943, 7512943, A76463, AC1208012, C2729, C2769, CO22229C, T198312

Brand New Open Box.
