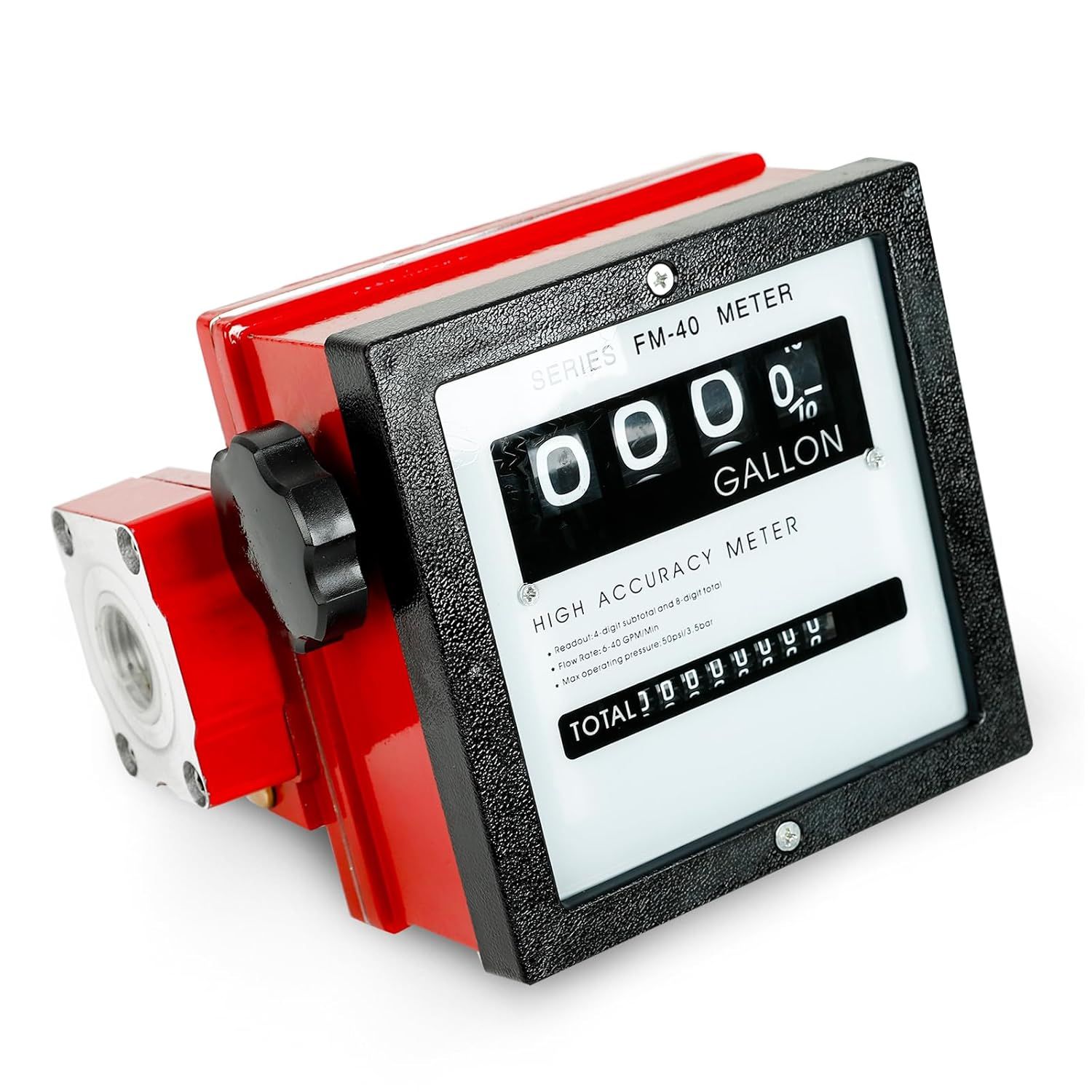

Mechanical Fuel Flow Meter 1.5" – Aluminum, 4-52 GPM, 4-Digit for Transfer Pumps

EASYBERG 1 1/2" (1.5 inch) Aluminum Mechanical Fuel Flow Meter, FM-40 Series 4-52 GPM 4 Digital, Used for Fuel Transfer Application

Features

• Attention: FM-40 series 4 Digital Mechanical Flow Meter is used for fuel transferring application, diesel fuel, kerosene ect. Due to the different equipment installed on the flow meter, the interface situation is also different, which may lead to leakage at the joint, which is a normal phenomenon. In order to ensure smooth use, it can be used together with an appropriate amount of sealant
• Easy To Use: These flow meters are reliable, inexpensive, and easy to install and simple to calibrate on the workplace. lt has the advantage of easy reading, quick resetting, and knob, flexible flow ports can be positioned vertically or horizontally
• Resettable: The easy reset register indicates product use up to 999/999.9. The master totalizer registers up to 999999/9999, 9999. Aluminium metering chamber, thread connection. Mechanical readout device with rotating wheels
• Flow Rate: 15-200L/min, Accuracy Grade: Positive negative 2%, Nominal Path: 1.5 inch, Applicable Media: Diesel oil etc
• Product Modality: Mechanical type, Shell Material: External plastic, Repeatability: 0.2%, Maximum Working Pressure: 50Psi/3.5Bar, Burst Pressure: 30Bar

Brand New Open Box.
